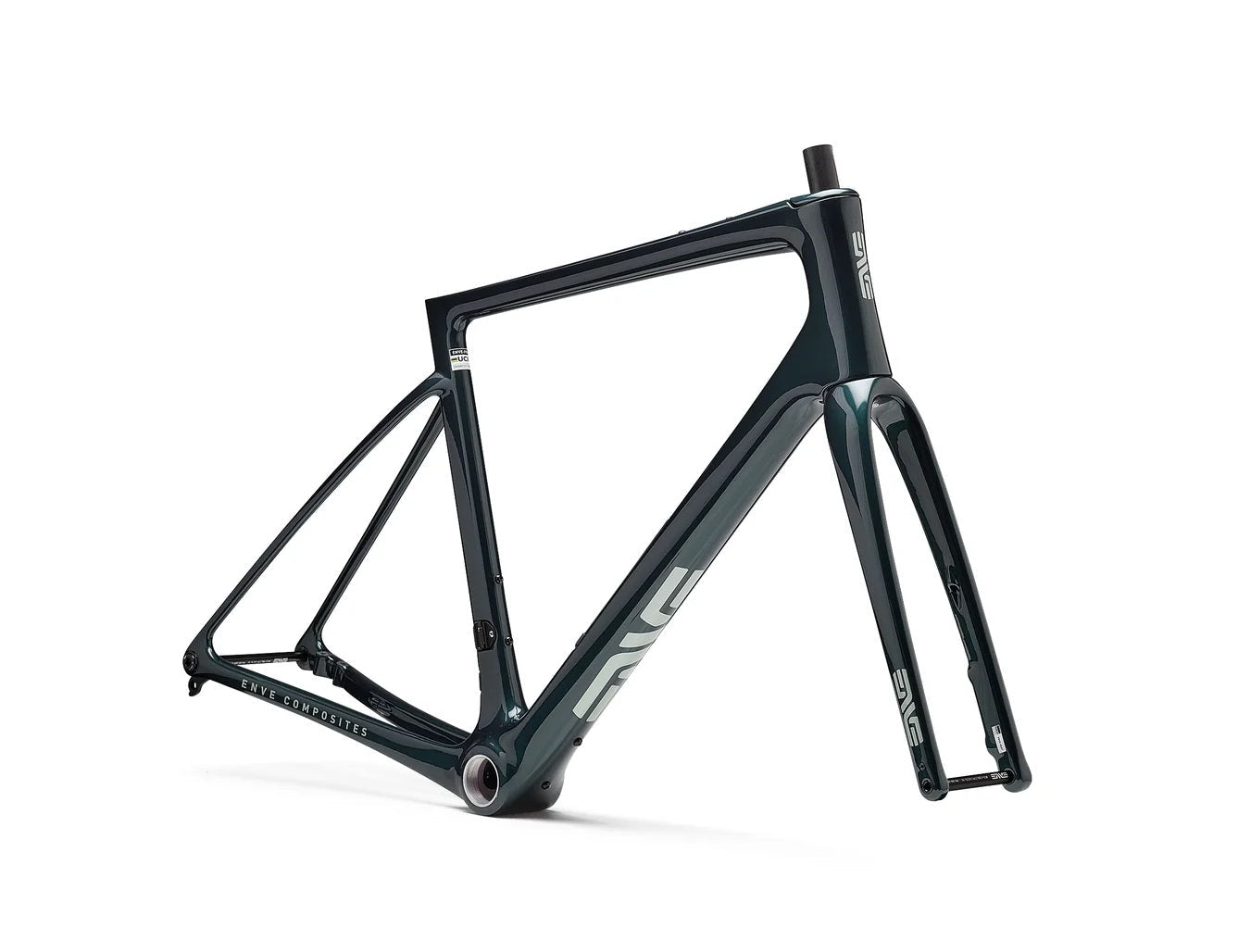

ENVE FRAY FRAME ONLY BR GREEN 56CM
ENVE FRAY FRAME ONLY BR GREEN 56CM
SKU: SKU:NV/FR/FRAY/BRG/56
Fray - Frameset
The Fray embodies everything a modern all-road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.
Product Details
Real-World Fast™ aero optimization
Geometry optimized for 31mm - 35mm tires
Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
Aero tube shapes & design that complements SES rim shapes
Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
Frame Weight 900g (Size 56cm Painted, No Hardware)
Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,
56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c
COMPONENT COMPATIBILITY
Handlebars ENVE IN-Route Recommended
Stem ENVE IN-Route Recommended
Seat Posts Aero Seatpost
DRIVETRAIN COMPATIBILITY
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (Fray requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (Fray requires continuous housing for FD)
Campy Electronic EPS Not Compatible
Brake Rotors
Fork
Fork is 160mm only
Frame
Rear brake/frame is 140mm or 160mm with adapter.
What's Included
Package PN Description
Frame
Fork (Rake is Frame Size Dependent)
Installed On Fork 200-2009-008 Front Axle
Installed On Frame 000-0050-951 Rear Axle
Installed On Frame UDH Rear Derailleur Hanger and Bolt
Installed On Frame 100-5003-014 Front Derailleur Mount
Installed On frame 000-0050-903 M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head)
Installed On Frame 000-0050-946 Fender Mount Set Screws (M5x0.8x10mm)
Installed On Frame 100-5003-904 Chainstay Protector
Disc Brake Rotor Protector
Installed On Frame 100-5006-XXX Frame Door and Latch (Frame Color Dependent)
Installed On Frame 100-5004-017 Cargo Bay Door Gasket
Installed On Frame 100-5004-904 Cargo Bay Door Hardware
Installed On Frame 100-5004-032 Cargo Bay Latch Anti-Friction Sticker
In Bag 100-5004-906 6mm Cable Routing Hole Plug
Di2 Wire Cable Grommet
Blank Cable Grommet
Shift Housing Cable Grommet
In Bag 100-5003-901 Seatpost Clamp Kit
In Bag 100-5003-015 Headset Kit
In Bag 100-5003-XXX Top Headset Bearing Cover (Frame Color Dependent)
In Bag 200-0000-032 Fork Compression Plug
In Bag 100-5004-027 Cargo Bay Storage Bags (2)
In Bag 100-5004-028 Cable Management Strap
In Bag Owner's Manual
In Bag Torque Wrench (Includes Extra Accessory Bits)
In Bag Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam)
...
