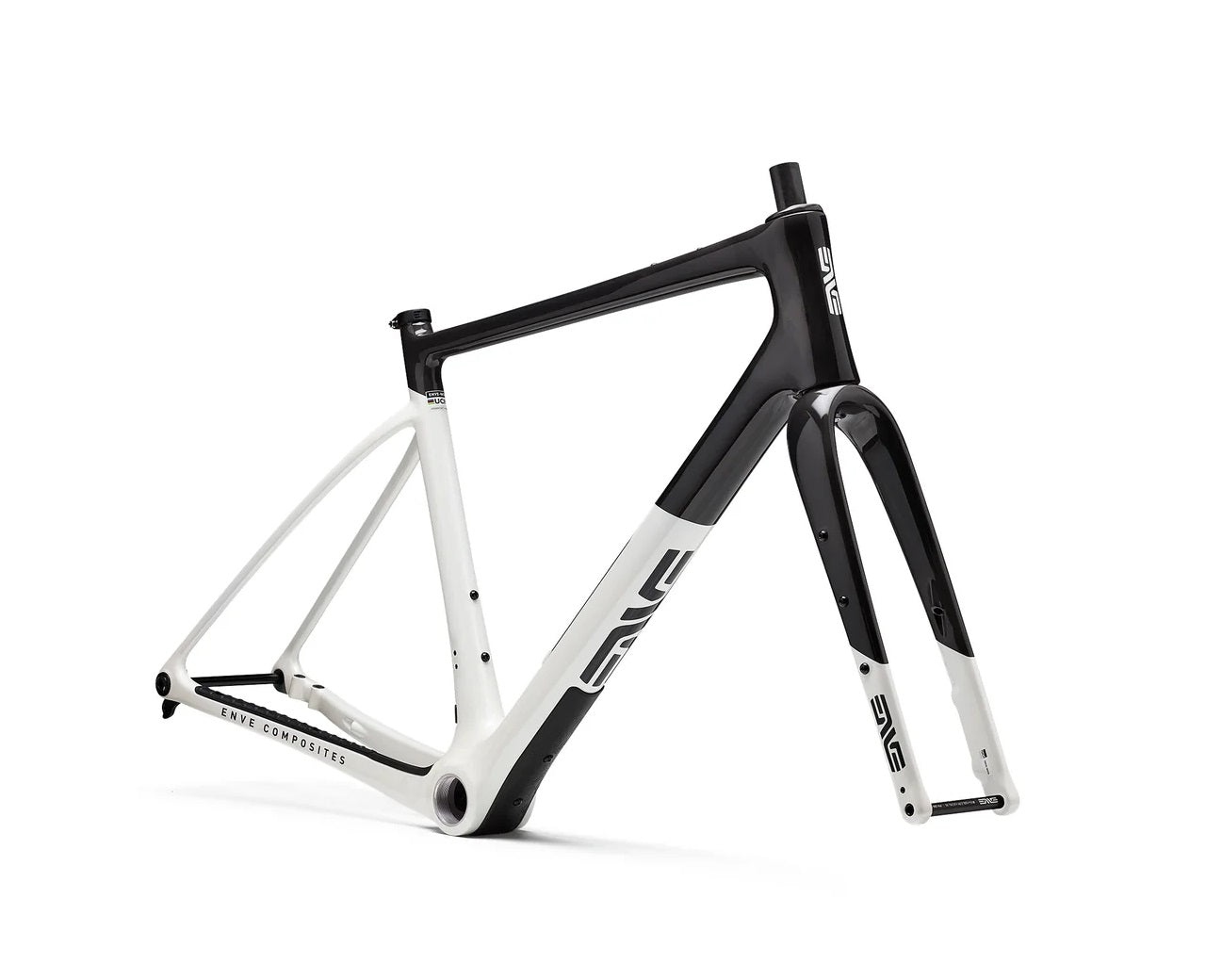

ENVE MOG FRAME ONLY ASPEN WHITE 58CM
ENVE MOG FRAME ONLY ASPEN WHITE 58CM
SKU: SKU:NV/FR/MOG/WHITE/58
The MOG embodies everything a modern gravel bike should be—purpose-built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in-frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.
Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long-haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.
Frame weight: 950 grams (56cm, painted, no hardware)
Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)
Color Pantone 7528C (Equivalent to Sand)
Component Compatibility
Handlebars Gravel, SES AR, Compact, SES Aero Road
Stem ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
Seatposts ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2
Drivetrain Compatibility
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (MOG requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (MOG requires continuous housing for FD)
Campy Electronic EPS Not Compatible
Brake Rotors
Fork
Fork is 160mm or 180mm with adapter.
Frame Rear brake/frame is 140mm or 160mm with adapter.
...
The MOG embodies everything a modern gravel bike should be—purpose-built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in-frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.
Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long-haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.
Frame weight: 950 grams (56cm, painted, no hardware)
Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)
Color Pantone 7528C (Equivalent to Sand)
Component Compatibility
Handlebars Gravel, SES AR, Compact, SES Aero Road
Stem ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
Seatposts ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2
Drivetrain Compatibility
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (MOG requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (MOG requires continuous housing for FD)
Campy Electronic EPS Not Compatible
Brake Rotors
Fork
Fork is 160mm or 180mm with adapter.
Frame Rear brake/frame is 140mm or 160mm with adapter.
