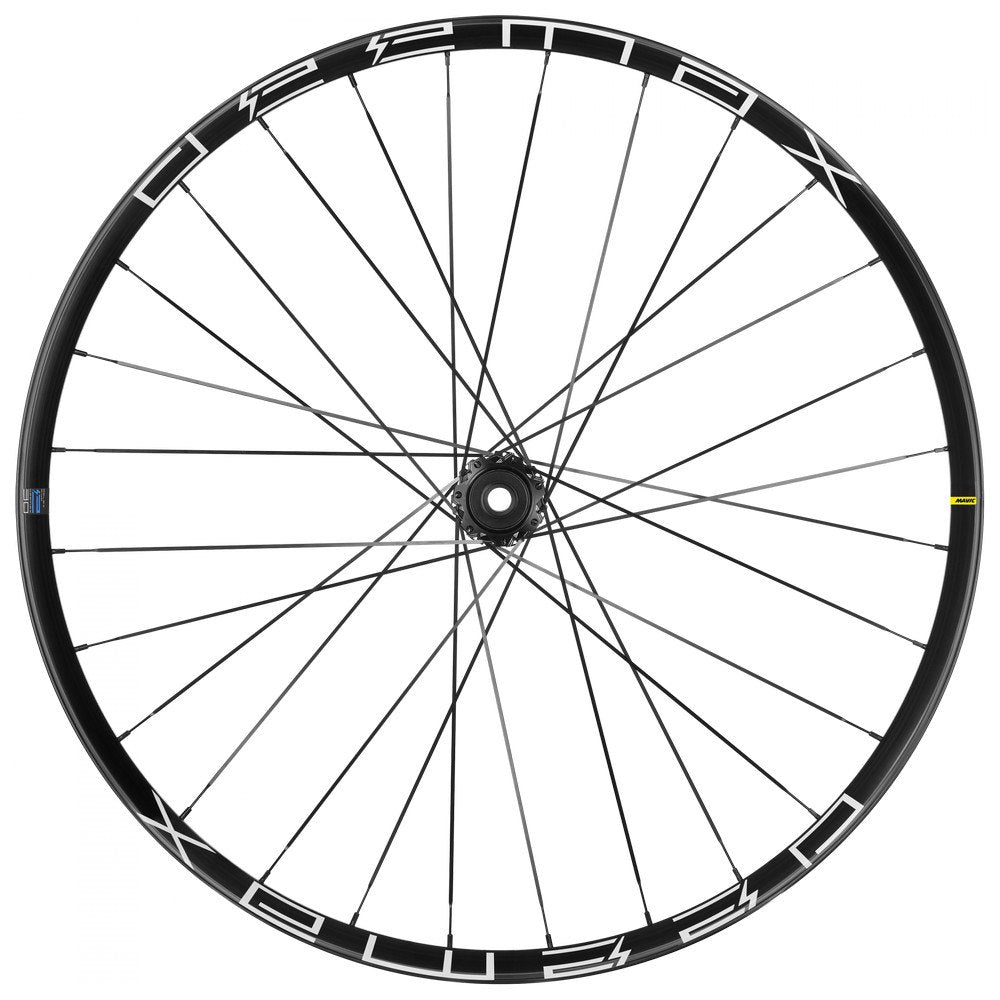

E-DEEMAX 30 29 REAR BST MS 2024 C/L
E-DEEMAX 30 29 REAR BST MS 2024 C/L
SKU: SKU:DM/R00068007
RRP: $535.45
Description
E-Deemax: strong, reliable and durable
All the Mavic expertise gathered on this E-Bike specific MTB wheelset : with a brand new 30mm rim profile that eases tyre installation and protects against pinch flat (PFP technology). The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy. The exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
Hub
This new generation of E-Deemax is laced on the brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette. The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes. The Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
Features
Strong and durable
Welded rim with Pinch Flat Protection (PFP) for less risk of flat
Super strong rim profile
New Infinity hub design specifically made for the rigor of E-MTB riding
Made to handle the extra power and torque of E-Bike motor
28 bladed reinforced spokes
Proven reliability of ID360 double ratchet freewheel system
Maximum load supported byt the wheel : 180kg
Steel freewheel body for improved resistance
Improved tubeless compatibility
Wider rim central channel to ease installation of reinforced tyres
Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat
Tech Specs
Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Drilling: traditional (rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO size: 622x30TC
Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
Real weight: 1.277 Kg (rear)
Spokes
Material: steel
Shape: straight, flat, antirot (rear)
Nipples: steel, ABS, black
Lacing: crossed 3 (rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard : Center Lock®
Axle material: aluminum
Axle size: rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano MS
Bearing technology: QRM automatic setting - sealed cartridge
Included
User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel
Intended use
Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
ASTM category 5 : gravity riding focused on the descent
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
Groupe Sportif SKU: DM/R00068007
...
Description
E-Deemax: strong, reliable and durable
All the Mavic expertise gathered on this E-Bike specific MTB wheelset : with a brand new 30mm rim profile that eases tyre installation and protects against pinch flat (PFP technology). The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy. The exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
Hub
This new generation of E-Deemax is laced on the brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette. The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes. The Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
Features
Strong and durable
Welded rim with Pinch Flat Protection (PFP) for less risk of flat
Super strong rim profile
New Infinity hub design specifically made for the rigor of E-MTB riding
Made to handle the extra power and torque of E-Bike motor
28 bladed reinforced spokes
Proven reliability of ID360 double ratchet freewheel system
Maximum load supported byt the wheel : 180kg
Steel freewheel body for improved resistance
Improved tubeless compatibility
Wider rim central channel to ease installation of reinforced tyres
Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat
Tech Specs
Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Drilling: traditional (rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO size: 622x30TC
Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
Real weight: 1.277 Kg (rear)
Spokes
Material: steel
Shape: straight, flat, antirot (rear)
Nipples: steel, ABS, black
Lacing: crossed 3 (rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard : Center Lock®
Axle material: aluminum
Axle size: rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano MS
Bearing technology: QRM automatic setting - sealed cartridge
Included
User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel
Intended use
Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
ASTM category 5 : gravity riding focused on the descent
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
Groupe Sportif SKU: DM/R00068007
