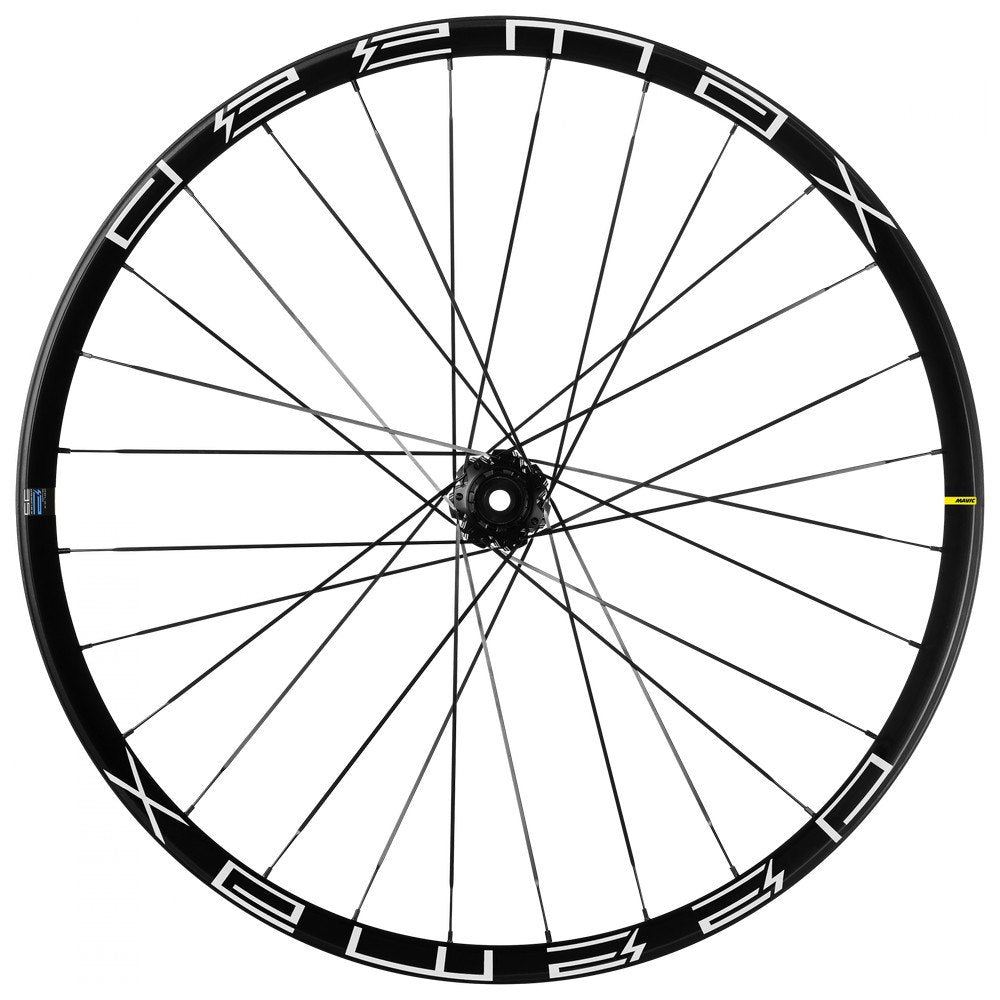

E-DEEMAX 35 27,5 REAR BST XD, 6 BOLT 2024
E-DEEMAX 35 27,5 REAR BST XD, 6 BOLT 2024
SKU: SKU:DM/R4092110
The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 35 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 35mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
- As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.
Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 35 is available with 6-bolt or center lock brake rotors in 27” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessorie
Key Technologies:
Maxtal:
- Light and strong Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
- Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
- QRM Auto bearing preload technology
- Instant Drive 360 freewheel technology
- UST tubeless technology
Key Benefits:
Strong and durable:
- Welded rim with Pinch Flat Protection for : Less risk of flat A super strong rim profile A perfectly sealed rim profile
- E-Bike specific and reliable construction:
- 28 wide double butted spokes Super reliable ID360 double ratchet freewheel system Bigger flange diameter hubs
Tubeless ready technology:
- A tubeless rim profile with tubeless tape make it easy to ride tubeless tires for more traction and less risk of flat
Specifications:
Rims:
- Tire: UST Tubeless and tubetype
- Sup
- Drilling: traditional
- Internal width: 35 mm
- E-Bike specific rim profile
- Etrto size 27.5´´: 584x35TC
- Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
- Asymmetrical rim design
Spokes:
- Lacing: front and rear crossed 3
- Shape: straight pull, flat
- Count: 28 front and rear
Hubs:
- Instant Drive 360
- QRM Auto
- Hub available with 6-bolt or center lock (R) brake rotors
- Axles: Front 15X110 Boost ; Rear 12X148 Boost
Versions:
- Disc standard : 6 Bolts or Center Lock (R)
- Hub width : Boost only (front 110, rear 148)
- Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
...
The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 35 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 35mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
- As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.
Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 35 is available with 6-bolt or center lock brake rotors in 27” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessorie
Key Technologies:
Maxtal:
- Light and strong Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
- Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
- QRM Auto bearing preload technology
- Instant Drive 360 freewheel technology
- UST tubeless technology
Key Benefits:
Strong and durable:
- Welded rim with Pinch Flat Protection for : Less risk of flat A super strong rim profile A perfectly sealed rim profile
- E-Bike specific and reliable construction:
- 28 wide double butted spokes Super reliable ID360 double ratchet freewheel system Bigger flange diameter hubs
Tubeless ready technology:
- A tubeless rim profile with tubeless tape make it easy to ride tubeless tires for more traction and less risk of flat
Specifications:
Rims:
- Tire: UST Tubeless and tubetype
- Sup
- Drilling: traditional
- Internal width: 35 mm
- E-Bike specific rim profile
- Etrto size 27.5´´: 584x35TC
- Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
- Asymmetrical rim design
Spokes:
- Lacing: front and rear crossed 3
- Shape: straight pull, flat
- Count: 28 front and rear
Hubs:
- Instant Drive 360
- QRM Auto
- Hub available with 6-bolt or center lock (R) brake rotors
- Axles: Front 15X110 Boost ; Rear 12X148 Boost
Versions:
- Disc standard : 6 Bolts or Center Lock (R)
- Hub width : Boost only (front 110, rear 148)
- Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
