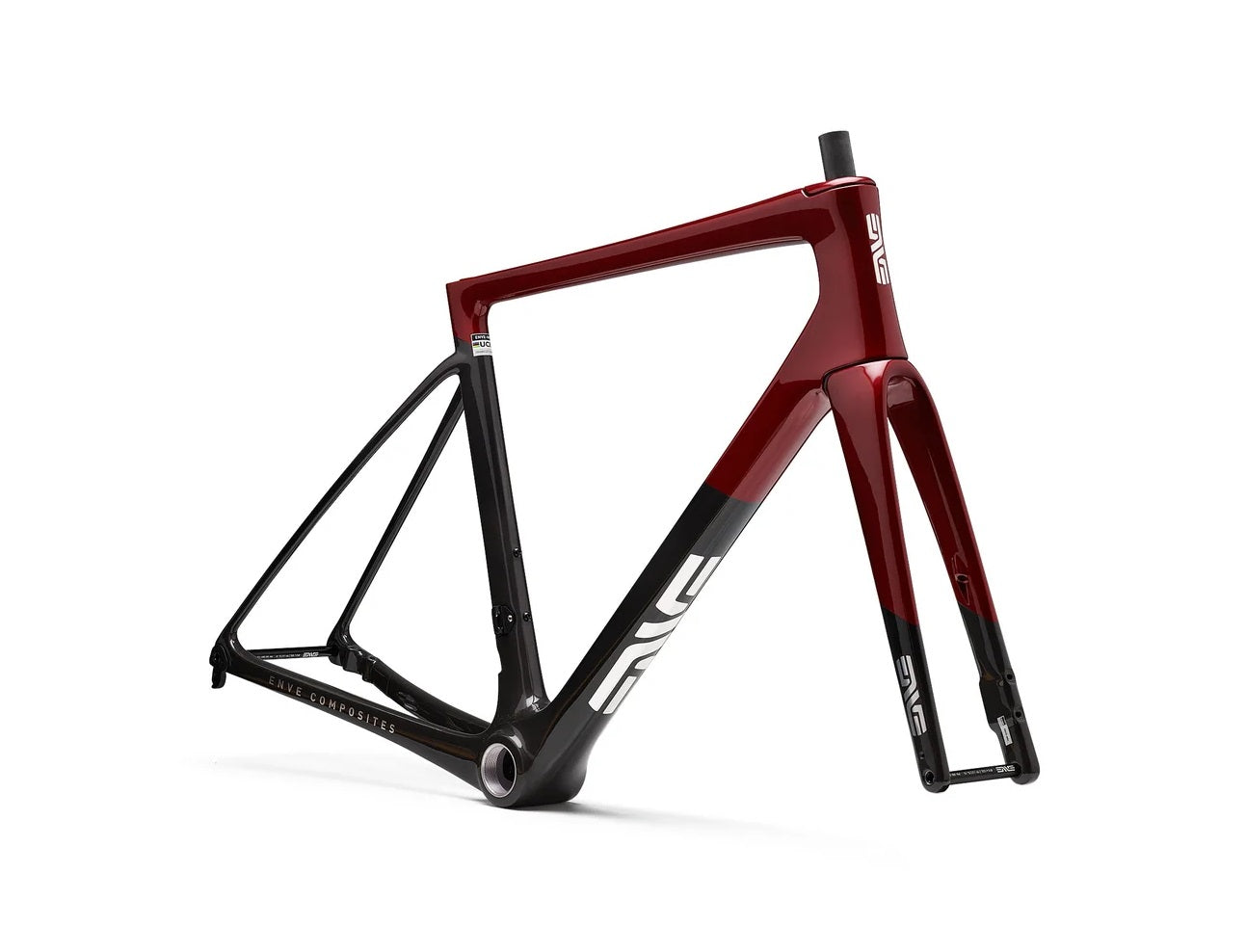

ENVE MELEE FRAME ONLY ICONIC RED 56CM
ENVE MELEE FRAME ONLY ICONIC RED 56CM
SKU: SKU:NV/FR/MEL/RED/56
Melee - Frameset
The Melee is our dedicated performance road platform, engineered for efficiency, precise handling, and the demands of modern racing. Aerodynamic tube shapes, integrated design, and refined carbon construction work together to deliver a fast, responsive ride. Built for riders who value purposeful engineering and consistent performance.
Product Details
Real-World Fast™ aero optimization
Tube shapes complement SES rim shapes
Max Tire Clearance: 35 mm
Frame Weight: 850 grams (56cm, Painted, No Hardware)
Frame Material ENVE M.O.D Carbon
Fork Material ENVE M.O.D Carbon
Target Application Road Race/Performance
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43, 39
Frame Size/Fork Rake 47cm/55, 50cm/51, 52cm/47, 54cm/47,
56cm/43, 58cm/43, 60cm/39
Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.5, TL:14)
Minimum Tire Size 25c
Optimal Tire Size 27c-32c
Maximum Listed Tire Clearance 35c
Frame Routing Internal
COMPONENT COMPATIBILITY
Handlebars ENVE IN-Route Recommended
Stem ENVE IN-Route Recommended
Seat Posts Aero Seatpost
DRIVETRAIN COMPATIBILITY
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (Melee requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (Melee requires continuous housing for FD)
Campy Wired EPS No
Campy Wireless EPS Yes
Brake Rotors
Fork
Fork is 160mm only
Frame
Rear brake/frame is 140mm or 160mm with adapter.
What's Included
Package PN Description
Frame
Fork (Rake is Frame Size Dependent)
Installed On Fork 200-2009-008 Front Axle
Installed On Frame 000-0050-951 Rear Axle
Installed On Frame 100-5003-014 Front Derailleur Mount
Installed On Frame 100-5003-013 Rear Derailleur Hanger
Installed On frame 000-0050-903 M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head)
Installed On Frame 000-0050-946 Fender Mount Set Screws (M5x0.8x10mm)
Installed On Frame 100-5003-904 Chainstay Protector
Disc Brake Rotor Protector
In Bag 100-5003-903 Front Derailleur Housing Grommet
Front Derailleur Di2 Grommet
Front Derailleur Cable Hole Grommet
In Bag 100-5003-901 Seatpost Clamp Kit
In Bag 100-5003-014 Headset Kit
In Bag 100-5003-XXX Top Headset Bearing Cover (Frame Color Dependent)
In Bag 200-0000-032 Fork Compression Plug
In Bag 000-1000-971 Fork Brake Caliper Bolts and Washers (M5x0.8x40mm Torx Button Head Screw, SS)
In Bag Owner's Manual
In Bag Torque Wrench (Includes Extra Accessory Bits)
In Bag Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam)
...
