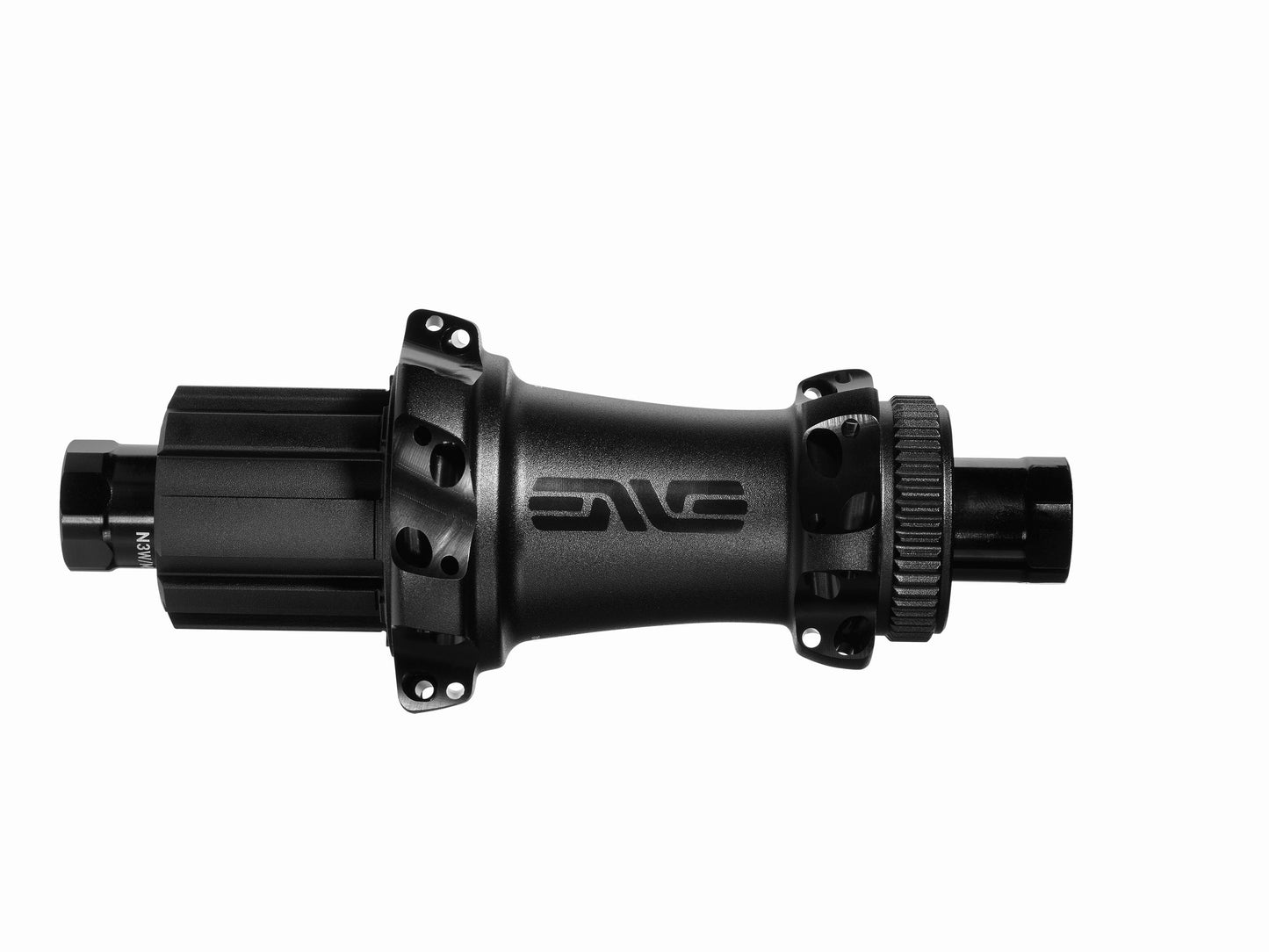

ENVE SVC HUB INDR DISC C/L 24H 12x142 REAR HG
ENVE SVC HUB INDR DISC C/L 24H 12x142 REAR HG
SKU: SKU:NV/HUB/SVC/R
RRP: $1,139.00
INNER DRIVE HUBS
We are proud to introduce the ENVE INNERDRIVE™ System, an all-new, 100% ENVE drive mechanism shrouded in an all-new premium straight-pull hubshell to further enhance performance and the ride experience.
INNERDRIVE SYSTEM
INNERDRIVE™ represents the pinnacle of bicycle drive mechanisms. Oversized proprietary steel ratchets are positioned inboard and over the bearings reducing stress on the axle and bearings while ensuring positive and reliable engagement.
100% ENVE designed oversized 42mm ratchet drive system
Longer bearing life
Reduced axle stress = less bearing drag and prolonged bearing life
Drive component retention
Perfect Preload - automatic preload adjustment
Low maintenance & easy serviceability
Weight: Front: 109g | Rear: 217g
INNERDRIVE
PERFECT PRELOAD
Perfect Preload™ is a system that eliminates the need for bearing preload adjustments. Using a tuned wave washer, bearing preload is optimized from the factory and dynamically adjusted over the life of the hub. No tools required, just Perfect Preload™ all the time.
Tuned wave washer between bearings for consistent and even force to eliminate play
Improved bearing efficiency
Prolonged bearing life
No adjustment required
INNERDRIVE
RATCHET RETENTION
No more ratchets, springs, and other critical driver components lost to the road, trail, and trunk of your car when the rear wheel is off the bike for transit or flat repair.
No loose parts
Drive ratchets stay put when cassette is off
RATCHETS, NOT PAWLS
Immediate, zero flex engagement
100% engagement of teeth
Isolated torque transmission for reduced axle load and stress
42mm ratchet
Large diameter = lower stress on ratchet teeth
Prolonged bearing life
Extreme durability
Fewer parts = less/lower maintenance
REFINE YOUR RIDE
RATCHET OPTIONS
-Four interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution.
40t - 9° Engagement
60t - 6° Engagement (Stock Road/Gravel Offering)
80t - 4.5° Engagement
100t - 3.6° Engagement
THE HUBSHELL
Equal spoke lengths drive and non-drive, and front to rear if rim ERD is equal
Non-contact spoke crossings
Anti-twist spoke design for improved wheel builds
10% Lateral stiffness increase over previous J-bend hubshells
...
INNER DRIVE HUBS
We are proud to introduce the ENVE INNERDRIVE™ System, an all-new, 100% ENVE drive mechanism shrouded in an all-new premium straight-pull hubshell to further enhance performance and the ride experience.
INNERDRIVE SYSTEM
INNERDRIVE™ represents the pinnacle of bicycle drive mechanisms. Oversized proprietary steel ratchets are positioned inboard and over the bearings reducing stress on the axle and bearings while ensuring positive and reliable engagement.
100% ENVE designed oversized 42mm ratchet drive system
Longer bearing life
Reduced axle stress = less bearing drag and prolonged bearing life
Drive component retention
Perfect Preload - automatic preload adjustment
Low maintenance & easy serviceability
Weight: Front: 109g | Rear: 217g
INNERDRIVE
PERFECT PRELOAD
Perfect Preload™ is a system that eliminates the need for bearing preload adjustments. Using a tuned wave washer, bearing preload is optimized from the factory and dynamically adjusted over the life of the hub. No tools required, just Perfect Preload™ all the time.
Tuned wave washer between bearings for consistent and even force to eliminate play
Improved bearing efficiency
Prolonged bearing life
No adjustment required
INNERDRIVE
RATCHET RETENTION
No more ratchets, springs, and other critical driver components lost to the road, trail, and trunk of your car when the rear wheel is off the bike for transit or flat repair.
No loose parts
Drive ratchets stay put when cassette is off
RATCHETS, NOT PAWLS
Immediate, zero flex engagement
100% engagement of teeth
Isolated torque transmission for reduced axle load and stress
42mm ratchet
Large diameter = lower stress on ratchet teeth
Prolonged bearing life
Extreme durability
Fewer parts = less/lower maintenance
REFINE YOUR RIDE
RATCHET OPTIONS
-Four interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution.
40t - 9° Engagement
60t - 6° Engagement (Stock Road/Gravel Offering)
80t - 4.5° Engagement
100t - 3.6° Engagement
THE HUBSHELL
Equal spoke lengths drive and non-drive, and front to rear if rim ERD is equal
Non-contact spoke crossings
Anti-twist spoke design for improved wheel builds
10% Lateral stiffness increase over previous J-bend hubshells
