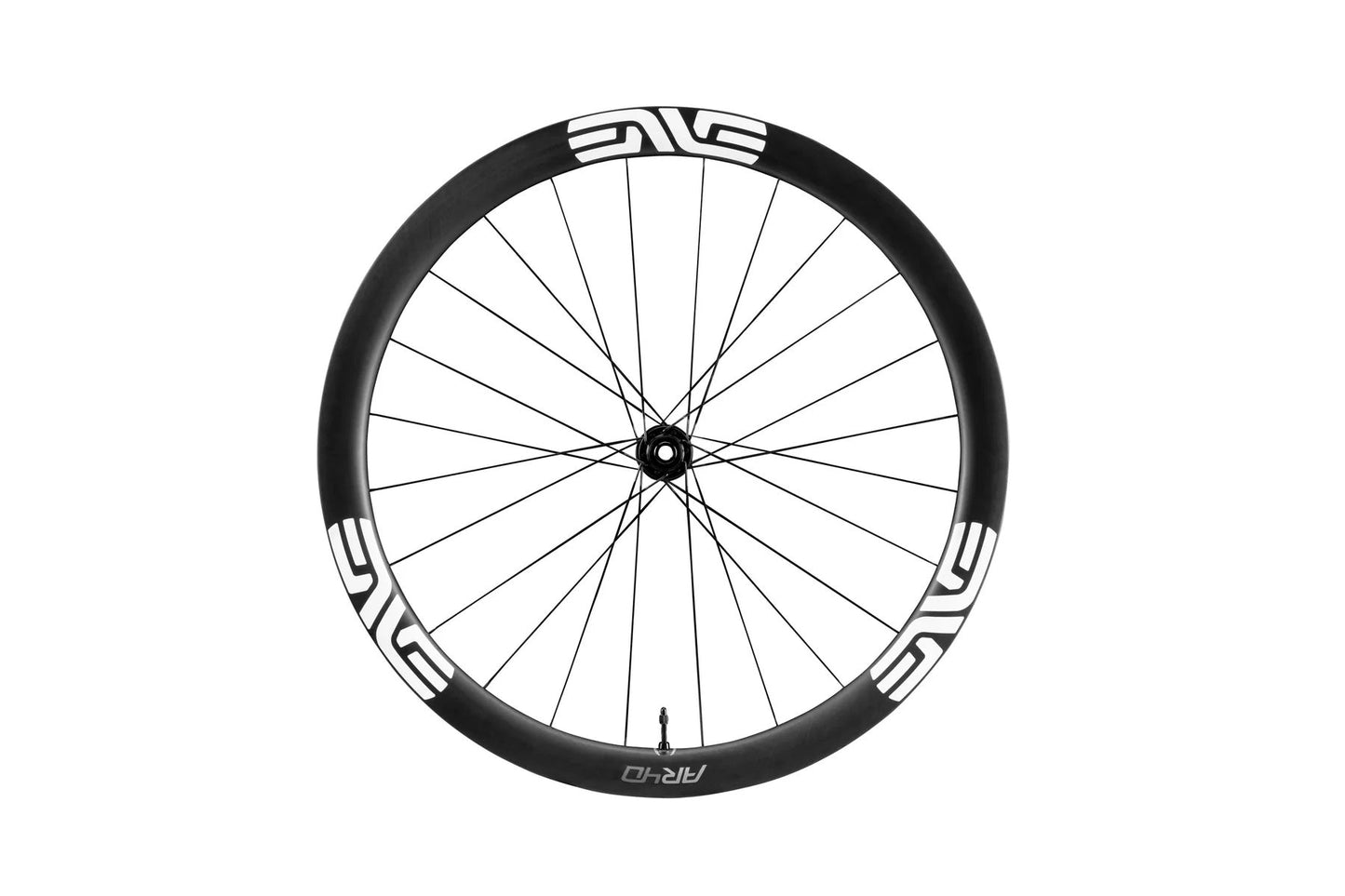

ENVE WHEEL FRONT AR40 INDR JB CL 12/100
ENVE WHEEL FRONT AR40 INDR JB CL 12/100
SKU: SKU:NV/AR40/F
RRP: $1,212.50
AR40
The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.
Product Details
Ultimate versatility for the on and off-road rider
1515g Wheelset Weight Avg. (+/- 3%)
Inner Rim Width: 25mm
Aero optimized tire size: 27mm*
Tested and qualified to ENVE's gravel standards
For Use With Tubeless Tires Only
*Tire must be Tubeless and listed as "Approved/Recommended" on ENVE's Tire Compatibility Page.
Build Specs
Spokes - Sapim CX-Ray J-Bend
Hub - ENVE INNERDRIVE - Foundation
Hub Spacing - Front: 12x100
Nipples - Alpina Nylock Brass
Spoke Tension - 120kgf
Brake Type - Centerlock
Dimensions
Effective Rim Diameter (ERD) - 579mm (+/- 3mm)
Internal Rim Width - 25mm
Sidewall Width - 3.6mm
Pinch Flat Technology - Wide Hookless Bead
Hole Count - 24h
Depth - 40mm
Tubeless Tape Width - 29mm
Tubeless Valve Length - 61mm
Spoke Tension 120kgf
Brake Type Centerlock
Spacing - Front: 12x100
Weights
Rim Weight - 425g
Wheel Weight - 690g Front
Wheelset Weight - 1515g (Includes Tape and Valves - HG Freehub)
Tire Optimization
Recommended Tire Size - 27 / 50mm
Minimum Tire Size - 27mm *
Maximum Tire Pressure for Min. Tire (psi | bar) - 80 psi | 5.5 bar
Groupe Sportif SKU: NV/AR40/F / Supplier SKU: 100-3324-001
...
AR40
The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.
Product Details
Ultimate versatility for the on and off-road rider
1515g Wheelset Weight Avg. (+/- 3%)
Inner Rim Width: 25mm
Aero optimized tire size: 27mm*
Tested and qualified to ENVE's gravel standards
For Use With Tubeless Tires Only
*Tire must be Tubeless and listed as "Approved/Recommended" on ENVE's Tire Compatibility Page.
Build Specs
Spokes - Sapim CX-Ray J-Bend
Hub - ENVE INNERDRIVE - Foundation
Hub Spacing - Front: 12x100
Nipples - Alpina Nylock Brass
Spoke Tension - 120kgf
Brake Type - Centerlock
Dimensions
Effective Rim Diameter (ERD) - 579mm (+/- 3mm)
Internal Rim Width - 25mm
Sidewall Width - 3.6mm
Pinch Flat Technology - Wide Hookless Bead
Hole Count - 24h
Depth - 40mm
Tubeless Tape Width - 29mm
Tubeless Valve Length - 61mm
Spoke Tension 120kgf
Brake Type Centerlock
Spacing - Front: 12x100
Weights
Rim Weight - 425g
Wheel Weight - 690g Front
Wheelset Weight - 1515g (Includes Tape and Valves - HG Freehub)
Tire Optimization
Recommended Tire Size - 27 / 50mm
Minimum Tire Size - 27mm *
Maximum Tire Pressure for Min. Tire (psi | bar) - 80 psi | 5.5 bar
Groupe Sportif SKU: NV/AR40/F / Supplier SKU: 100-3324-001
